Cryogenic Vessels Manufacturer

DSW offers a complete line of Cryogenic Vessels, including the following types: flat-bottom cryogenic tanks, pressurized liquid storage tanks, dewar, cryogenic pumps for liquid oxygen (LOX), liquid nitrogen (LIN), liquid argon (LAR), and liquid carbon dioxide (CO2) service.

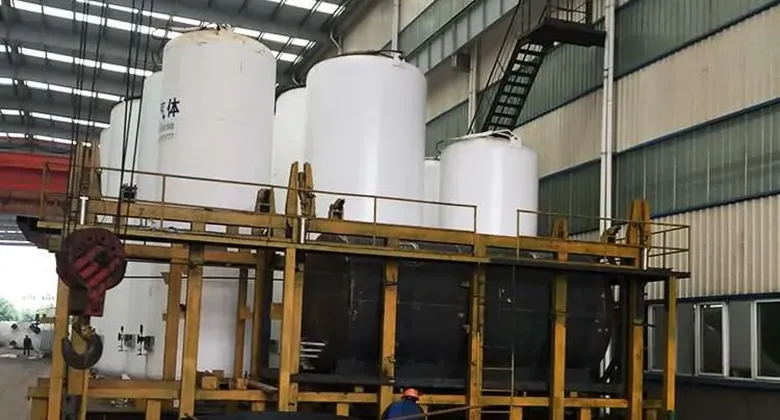

Design of Cryogenic Pressure Vessels

Depending on the design of cryogenic pressure vessel parameters, tanks are produced to store the inner gas at -196 ºC or a lower temperature. The cryogenic storage tanks, pressure vessels, and vaporizers are manufactured in China. CODE 2000, EN 13458, EN 13530, ADR 2009, and the ASME Section are used as design standards.

The cryogenic vessels consist of two tanks: the inner tank, made of stainless steel 304L (X5 CrNi 18-10) and designed to EN13458 standards, and the outer tank, made of carbon steel and also designed to EN13458 standards. The space between the tanks is filled with Perlite aggregation and superinsulated using vacuum technology.

Here’s a breakdown of the manufacturing processes:

  • The inner tank stores gas at temperatures as low as -196 ºC.
  • LIN, LOX, and LAR cryogenic storage tank capacities range from 300 to 80,000 gallons (50 tons).
  • Vaporizers range from 700 SCFH (20 Nm3/h) to 35,000 SCFH (1000 Nm3/h) per unit.
  • Liquid CO2 storage tanks are offered in sizes holding 3 to 50 tons of products.

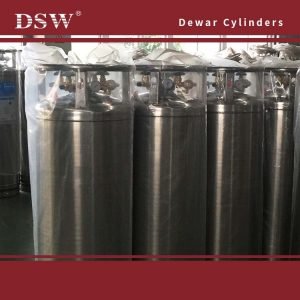

Dewars and Cryogenic Vessels

Dewars and cryogenic vessels offer high-performance solutions for safely handling and long-term storage of various gases, including liquid nitrogen and corrosive substances like chemicals or acids. These vessels use high-density materials to maximize resistance against chemicals and corrosion-producing liquids. They feature wide or narrow-mouthed openings, facilitating easy transference and pouring without spillage. These vessels are essential in industries requiring precise and reliable storage of gases for research, medical applications, or industrial processes. They come in various sizes and configurations to meet different storage needs and can be customized for specific requirements. Additionally, advanced insulation techniques are often employed to maintain stable temperatures and ensure the integrity of stored substances.

cryogenic tank exporters

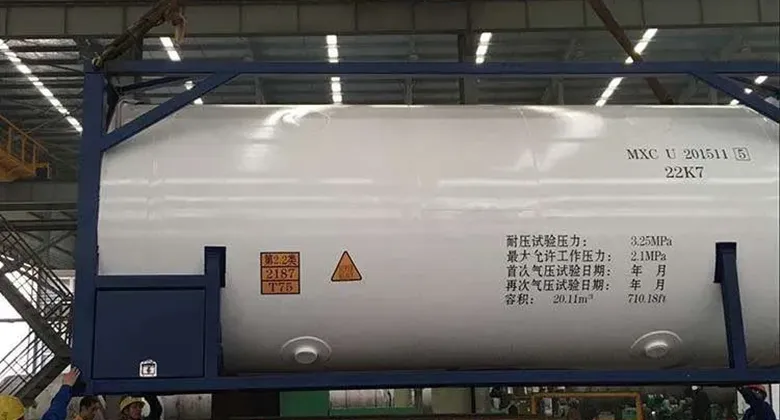

CRYOGENIC TRANSPORT TANKS

DSW International provides a comprehensive range of cryogenic transport tanks designed for transporting liquid oxygen (LOX), liquid nitrogen (LIN), liquid argon (LAR), and fluid carbon dioxide (CO2). These tanks are meticulously engineered to store the inner gas at temperatures as low as -196 ºC or lower, depending on specific design parameters. They are equipped with advanced features to ensure the safe and efficient transportation of cryogenic liquids, making them essential equipment for industries requiring reliable and secure transport of gases. DSW International’s cryogenic transport tanks are built to meet rigorous safety standards and are trusted by clients worldwide for their performance, durability, and versatility.

Cryogenic Vessels, liquid storage tanks

Cryogenic Liquid Tanks

Cryogenic liquid tanks are designed for storing gases in liquid form and are tailored to meet customers’ pressure requirements. These tanks feature an inner tank constructed from stainless steel 304L (X5CrNi18-10 as per DIN 10028-7 or equivalent), designed according to EN 13530 – 2002 standards. The outer tank is crafted from carbon steel and also adheres to EN 13530:2002 design standards.

These tanks are engineered to maintain the desired pressure conditions while safely storing the stored substances’ liquid and gas phases. They are crucial components in industries requiring the storage and transport of cryogenic liquids such as oxygen, nitrogen, argon, and other gases. The dual-tank construction provides added durability and safety, ensuring reliable performance in demanding environments.

Cryogenic Vessels, liquid storage tanks
DURA LIQUID CYLINDERS

DSW offers a complete line of Dura liquid cylinders. The Dura liquid cylinder is designed to transport, store and deliver oxygen, nitrogen, and argon as a cryogenic liquid or gas. Dura cylinders are vacuum and super-insulated vertical-type liquid cylinders with an in-built vaporizer that allows storage of cryogenic gases like oxygen, argon, nitrogen, and medical oxygen at a very low temperature ranging From -183deg C to -196 deg c. (Cryogenic Liquid Tanks)
argon diaphragm compressor

CRYOGENIC PUMPS

DSW provides a comprehensive range of cryogenic pumps designed to handle oxygen, nitrogen, and argon liquids extracted from cryogenic tanks and compress them to high pressure. These pumps play a crucial role in vaporization, where the compressed liquids are transformed into gaseous oxygen, nitrogen, or argon using an ambient air vaporizer.

Once vaporized, the high-pressure gas can be directed into cylinders via a gas manifold or fed into a customer’s product pipeline, depending on the application’s specific requirements. This process enables efficient and reliable gas distribution for various industrial, medical, and research purposes.

DSW’s cryogenic pumps are engineered to meet stringent performance and safety standards, ensuring optimal performance and reliability in demanding operating environments. With their advanced design and robust construction, these pumps are trusted by customers worldwide for their efficiency, durability, and versatility.
