LO2, LN2, LAR Cryogenic Tank

Cryogenic Tank

DSW provides diverse storage tanks, such as liquid oxygen tanks, liquid nitrogen tanks, liquid argon tanks, and liquid Nitrous Oxide tanks.
1. Tank sizes range from 2 cubic meters to 350 cubic meters.
2. Pressure options: 8bar, 16bar, or as per user specifications.
3. Cryo tank certifications: GB, ASME, CE
4. Cryo tank Orientation: Vertical/Horizontal
5. Insulation: Vacuum perlite powder and multi-layer super vacuum

LO2, LN2, LAR Cryogenic Tank

Cryogenic tanks, also known as cryo tanks or cryogenic storage tanks, are specialized containers designed to store cryogenic substances, such as liquid nitrogen, liquid oxygen, or liquefied natural gas (LNG).
These cryo tanks possess several distinct features that enable the safe and efficient handling of cryogenic materials.
DSW offers a wide range of cryogenic tanks, such as liquid oxygen tanks, liquid nitrogen tanks, liquid argon tanks, and liquid Nitrous Oxide tanks.

Features

Insulation: Heavy insulation minimizes heat transfer into the tank and maintains low temperatures. They are typically constructed with multiple layers of insulation materials.
Pressure options: 8bar, 16bar, or as per user specifications.
Safety Features: These features may include pressure relief valves, rupture discs, and pressure monitoring systems to prevent over-pressurization.
International standards encompass GB (National Standards of the People’s Republic of China), ASME (American Society of Mechanical Engineers), and CE (Conformité Européenne).
Vapor Space: Vapor space management is crucial to prevent the accumulation of excessive pressure or the release of hazardous gases. Cryotanks may include systems for controlling and managing the vapor space, such as pressure regulation systems or venting mechanisms.
Transfer Connections: These connections may include fill/drain valves, pressure relief connections, and vapour return lines. They are designed to facilitate the controlled transfer of the cryogenic material into and out of the tank while minimizing the risk of leaks or accidents.

We use a new material, strong stainless steel, to reduce the tank’s self-weight and increase efficiency.
Also, we provide non-standard size design services for clients.
Our tanks are widely used in gas, chemical, machinery, metallurgy, medicine, nuclear power, and other industries.

Design and Specifications of LO₂, LN₂, LAR Cryo Tank

Parameter Inner Tank Outer Tank
Design Pressure 0.84/1.68 MPa -0.1 MPa
Working Pressure 0.8/1.6 MPa 3 Pa
Temperature (℃) -196 50
Loading Medium LO2, LN2, LAR
Material 06Cr19Ni10 Q235-B
Test Pressure (MPa) 1.1/2.0 -0.1
Interlayer Brilliant Expansion Perlite
Leak Test Helium Test



LO₂, LN₂, LAR Cryogenic Tank

(Vacuum Powder Heat Insulation) – Main Specifications

Type Model Working Volume (M3) Working Pressure (MPa) Evaporation per day (%/d) Weight (Kg) Working Pressure (MPa)
Diameter x Length x Thickness
LO2 LN2 LAr Inner tank Total weight
Horizontal
type
DSWH-5/0.8 5 0.8 0.43 0.65 0.4 1000 4490 Inner Tank: 1400×3680×6
Outer Tank:   1900×4980×8
DSWH-5/16 5 1.6 0.43 0.65 0.4 1550 5100 In ner Tank:1400×3680×10
Outer Tank: 1900×4980×8
DSWH-10/0.8 10 0.8 0.36 0.55 0.38 1920 7510 Inner
Outer
Tank:
Tank
1700×4950×
2200×6250×8
DSWH-10/1.6 10 1.6 0.36 0.55 0.38 3040 8550 Inner Tank
Outer Tank
1700×4950×1
2200×6250×8
DSWH-15/0.8 15 0.8 0.35 0.53 0.3 2650 9450 Inner Tank: 1900×5950×8
Outer Tank   2400×7150×8
DSWH-15/1.6 15 1.6 0.35 0.53 0.37 4380 11250 In ner Tank: 1900×5950×14
Outer Tank   2400×7150×8
DSWH-20/0.8 20 0.8 0.33 0.5 0.35 3350 11350 Toner Tank
Outer Tank
2100×6465×8/14
2600×7830×8
DSWH-20/1.6 20 1.6 0.33 0.5 0.35 4950 13400 In ner Tank:2100×6465×14
Outer Tank   2600×7830×8
DSWH-30/0.8 30 0.8 0.29 0.44 0.31 5210 17400 Inner Tank: 2400×7410×10
Outer Tank:   3000×8750×10
DSWH-30/1.6 30 1.6 0.29 0.44 0.3 8180 20400 Inner
Outer
Tank
Tank
2400×7410×16
3000×8750×10
DSWH-50/0.8 50 0.8 0.23 0.35 0.24 8000 26150 Inner Tank:
Outer Tank
2600×10380×10
3200×11780×12
DSWH-50/1.6 50 1.6 0.23 0.35 0.24 13535 31750 Inner
Outer
Tant
Tank
2600×10380×18
3200×11750×12
DSWH-100/0.8 100 0.8 0.16 0.25 0.17 14740 45900 Inner Tank:
Outer Tank
3000×15425×12/14
3500×16870×14
DSWH-100/1.6 100 1.6 0.16 0.25 0.17 27070  5822 Inner  Tank: 3000×15425×22
Outer Tank   3600×16870×14

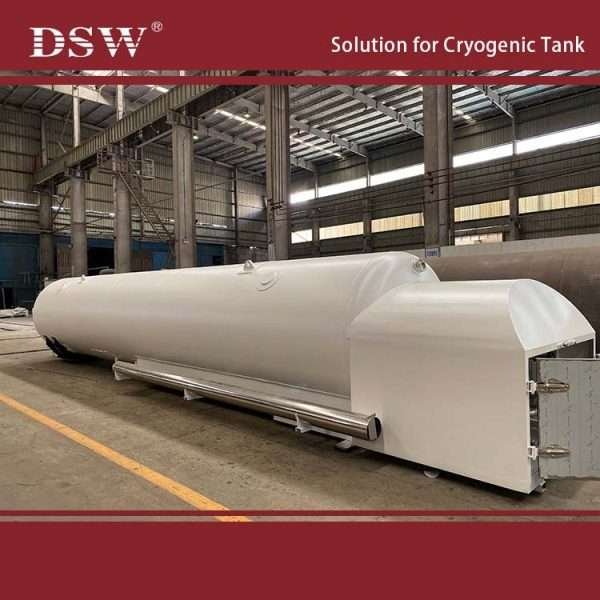

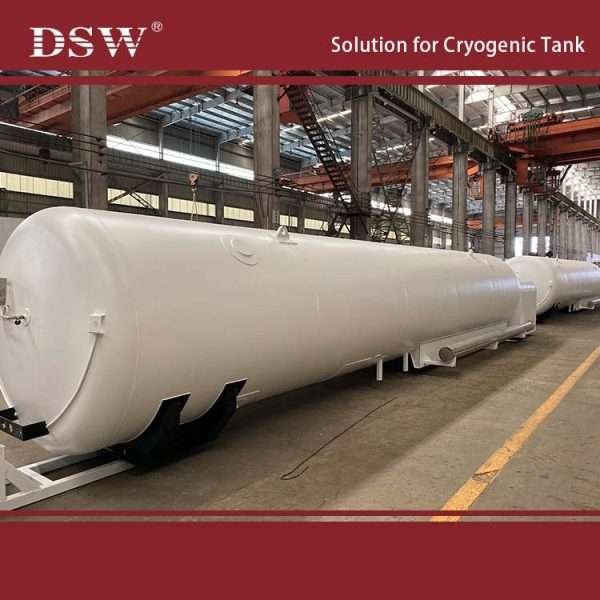

horizontal LO2 LN2 LAr cryogenic tank

horizontal LO2 LN2 LAr cryogenic tank
Cryogenic Liquid Storage Tank LOX storage tank
Cryogenic Liquid Storage Tank LOX storage tank
Cryogenic Liquid Storage Tank LOX storage tank

DSW storage tanks are designed, manufactured, and tested as per ASTM standards, ISO, safety technology supervision regulations for pressure vessels, and some other reference Chinese standards.

DSW warranty is one year after shipment. Within one year, we will send broken spare parts at our expense.
Upon request, if it is proven to be our product defect,
In fact, we rarely receive any requests for spare parts.
If the tanks are correctly maintained, they shall last 15 to 20 years.
