Cryogenic Transport Trailers

Cryogenic Trailers

A cryogenic transport trailer is a vehicle specifically designed to transport cryogenic gases and other cryogenic materials safely.
cryogenic transport trailer includes liquid nitrogen trailer,Liquid Oxygen Tanker.
Stainless steel inner and outer vessels
Best in-class vacuum and hold times
Low center of gravity
Rear side and center cabinet
Various pressure stages
Cryogenic Trailers for LIN, LOX, LAR, LNG, LBG and Ethylene

Cryogenic Transport Trailer

cryogenic trailers are trailers or semi-trailers specifically designed to transport liquefied gases under pressure.
Liquid gases in semi-trailers are typically at extremely low temperatures and high pressures.
With more than 20 years of engineering and manufacturing experience, DSW supplies trailers, semi-trailers, swap bodies, liquid tube trailers, and railcars to safely and efficiently distribute liquid gases, including nitrogen, oxygen, argon, carbon dioxide, hydrogen, natural gas, and more.
Cryogenic Transport Trailer, 20M3 Cryogenic LOX semitrailer Tank

Cryogenic Transport Trailer, Cryogenic trailers are used to transport cryogenic liquids to ensure their stability and safety throughout the journey.
Cryogenic liquids are typically liquefied gases at -150 °C or lower, like oxygen, argon, nitrogen, hydrogen, and helium.
Cryogenic tanker trailers also store gases at higher temperatures, including liquefied natural gas (LNG), carbon dioxide, and nitrous oxide.

Feature

Semi-trailers are equipped with landing gear (legs that can be lowered) to support them when they are uncoupled from the tractor unit.
Tanker trailers are a specific type of semi-trailer used to transport liquids, such as fuel, and are typically made from high-quality stainless steel or aluminium to minimize erosion.

Purpose: Cryogenic trailers are used to transport gases such as N2, O2, Ar, CO2, H, and more.
Design: These trailers are vacuum-insulated and engineered for performance, ease of operation, and safety.
Variety: Cryogenic trailers come in different forms, including:
Mobile Storage: Oversized vessels that haul empty over the road, ensuring product availability and improving onsite logistics.
Truck-Mounted Tanks: High vacuum super-insulated tanks customized for specific applications.
Offshore Skids: Designed for the rigorous demands of the offshore well services industry.
Nitrogen Pumping Equipment: Customizable for various vaporization capacities.
Cryogenic Vaporizers and Heat Exchangers: Used for industrial gases, rare gases, LNG, and other hydrocarbons.

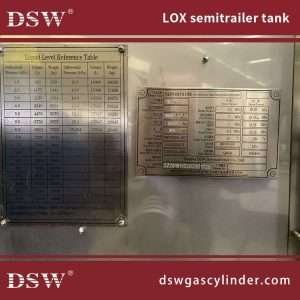

cryogenic trailers, LAR Trailers

Technical Specification

Design Code: GB/T 150 Pressure Vessels, NB/T47058-2017 Road Tankers for Refrigerated Liquefied Gas, ASME BPVC SEC VIII-2
Capacity: 20m3~52.6m3
Material: S30408/SA-240 304(Inner tank)/Q345R/SA-516(Outer tank)

Medium Semi-trailer Capacity Curb Payload Total Insulation Type
Dimension (m³) Weight (kg) Weight
(mm) (kg) (kg)
Liquid Oxygen Tanker 11000x2490x3600 26 13300 26700 40000 High Vacuum Multi-layer Insulation
Liquid Oxygen Tanker 11900x2550x3460 27 12270 27730 40000 High Vacuum Multi-layer Insulation
Cryogenic Nitrogen Trailer 11460x2500x3715 33.5 14875 25125 40000 High Vacuum Multi-layer Insulation
Liquid Nitrogen Trailer 12200/11951x2500x3775 35.17 13600 26400 40000 High Vacuum Multi-layer Insulation
Liquid Nitrogen Trailer 12390x2550x3715 36.4 13570 26430 40000 High Vacuum Multi-layer Insulation
LAr Trailer 11300x2500x3410 21.5 13020 26980 40000 High Vacuum Multi-layer Insulation
LAr Trailer 11890x2550x3320 22.6 11640 28360 40000 High Vacuum Multi-layer Insulation
LC2H4 12950x2490x3860 46.38 16300 23700 40000 High Vacuum Multi-layer Insulation
LC2H6 13000x2500x3900 51.55 15000 25000 40000 High Vacuum Multi-layer Insulation
LCO2 13000x2500x3600 27.5 15200 24750 39950 Foaming Insulation
LCO2 13000x2500x3600 29.6 13360 26640 40000 Foaming Insulation

LOX, LAR Cryogenic Transport Trailers
LOX, LAR Cryogenic Transport Trailers Tank
20M3 Cryogenic LOX semitrailer Tank

What are Cryogenic Trailers?

The Cryogenic Trailers are designed, engineered, and manufactured to store cryogenic liquefied gases under pressure.
Inner vessels are austenitic stainless steel and cold stretched for selected medium / high-pressure models for LIN, LOX, LAR, LNG, CO2, and N2O.
Available as single, double, and triple axle configurations
Designed and built fully by international specifications and standards
Incorporates all features for safety, efficiency, and ergonomic design

DSW supplies a complete range of storage and distribution products, including cryogenic storage tanks, vaporizers, MicroBulk systems, and mobile units for oxygen,
nitrogen, argon, carbon dioxide, and LNG in China by all applicable international transport and pressure vessel legislation.
