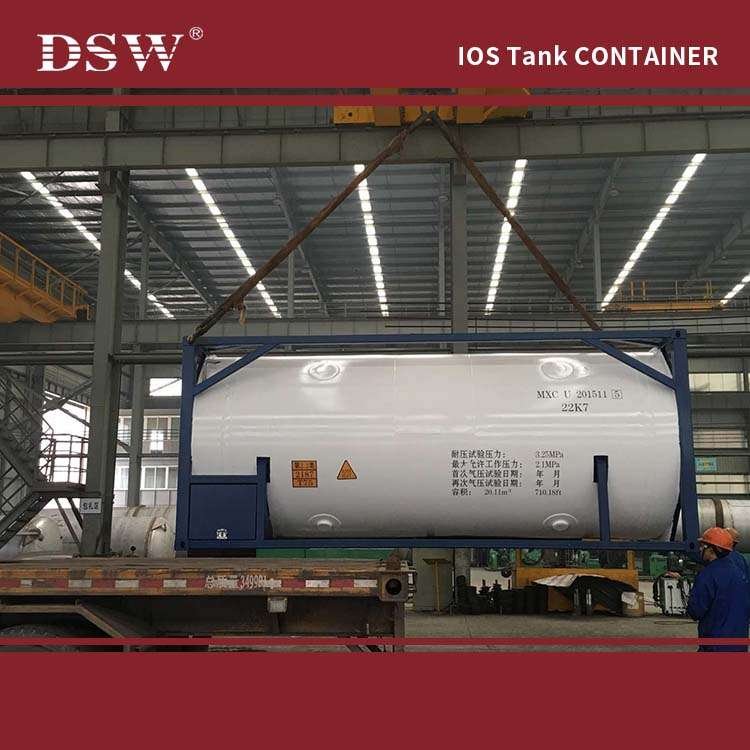

ISO Tank CONTAINER
ISO Tank containers are designed to transport or store bulk liquids in various capacities.
The liquefied gases are available, containing nitrogen, oxygen, LNG, argon, methane, nitrous oxide, ethylene, carbon dioxide, and hydrogen.
Sizes available as 20 ft iso tank container or 40′ models and built-in DSW facilities in China.
DSW engineered and manufactured ISO tank containers, which meet all applicable international design codes and are even dual-coded on request with high quality.
Cryogenic ISO Container Sizes
| Model | Gross Volum(m3) | Tare weight(kg) | Max. G.Weight(kg) | Width (mm) | Height(mm) | MAWP (MPa) | |
| ISO-20-8 | 20.6 | 8900 | 34000 | 2438 | 2591 | 0.2 ~3.7 | 20ft ISO TANK |
| ISO-20-17 | 11350 | ||||||
| ISO-20-24 | 13800 | ||||||
| ISO-40-8 | 45 | 12000 | 40ft Tank Container |
20 ft iso tank container
1. ISO tank container technical spec
| Model：1CC-TCS-20000/16 Insulation type： Multilayer | ||||
| NO | Items | Inner vessel | Outer vessel | |
| 1 | Design pressure MPa | 1.6 | -0.1（outer） | |
| 2 | Working pressure MPa | 1.6 | -0.1（outer） | |
| 3 | MAWP MPa | 1.6 | / | |
| 4 | Design temperature ℃ | -196 | -19～50 | |
| 5 | Working temperature ℃ | ≥-196 | normal | |
| 6 | Pneumatic test MPa | 1.6 | HLD | |
| 7 | G. Vol m3 | 20.8 | 5.5(interlayer) | |
| 8 | E. Vol m3 | 19.76 | / | |
| 9 | Medium | LOX/LIN/LAR | Multilayer | |
| 10 | Main material | S30408 | Q345R | |
| 11 | Treatment | Pickling and passivation | Sanding and coating | |
| 12 | Corrosion allowance mm | 0 | 0 | |
| 13 | Joint efficiency | 1 | 0.85 | |
| 14 | Filling rate | 95% | / | |
| 15 | Static evaporation %/d | ≤0.22(by LOX), ≤0.35 (by LIN), ≤0.24 (by LAR), | ||
| 16 | Seal off vacuum degree Pa | ≤1×10–2 | ||
| 17 | Leakage of vacuum interspace Pam3/s | ≤1×10–6 | ||
| 18 | ISO code | 22T7 | ||
| 19 | Diameter mm | Φ2150 | Φ2400 | |
| 20 | External Dimensions mm | 6058×2438×2591 | ||
| 21 | type | Horizontal | ||
| 22 | Tare weight Kg | ~7890 | ||
| 23 | Fully loading weight Kg | ~15986(LIN), ~27585(LAR), ~22546(LOX) | ||
| 24 | Design service life | 15years | ||
| 25 | Open pressure for safety valve | 1.89Mpa | ||
| 26 | Sort | Ⅲ | ||
| 27 | Portable tank guideline | T75 | ||
Features of ISO Tanks:
Durable Construction: The outer shell is constructed from high-strength carbon steel, ensuring durability, while the inner vessel is made from stainless steel, offering corrosion resistance and suitability for low temperatures.
Superior Insulation: Multi-layered vacuum insulation effectively minimizes heat transfer from the surrounding environment, maintaining the cryogenic liquids at their required cold temperatures during transport and storage.

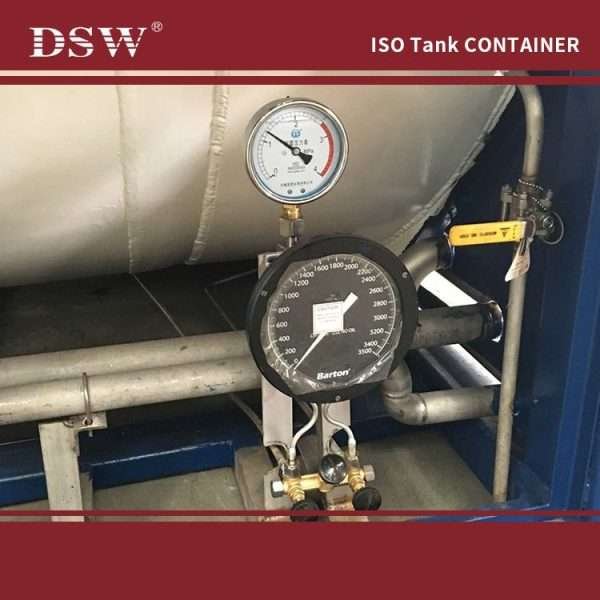

Pressure Regulation Systems: Equipped with safety relief valves that manage pressure buildup within the tank, preventing accidents.

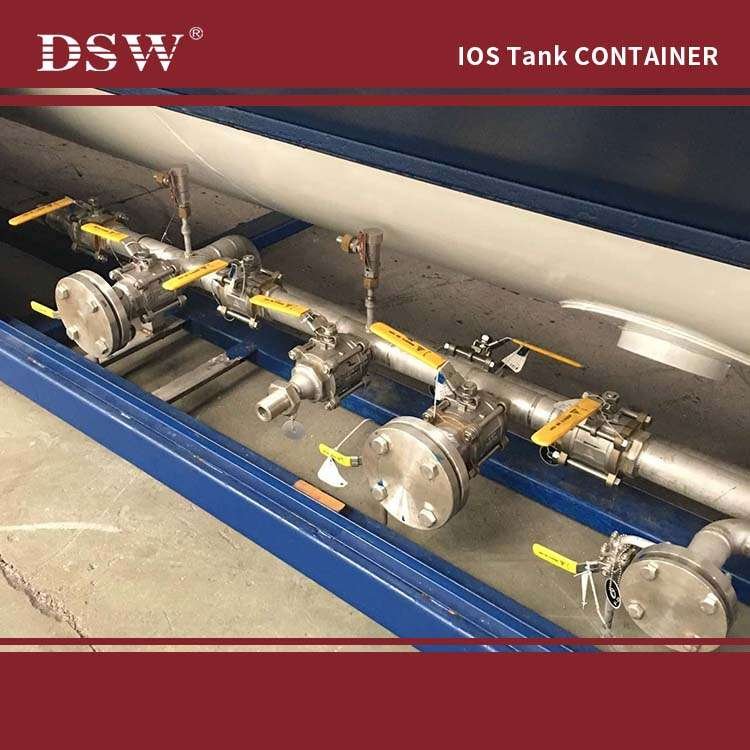

Transfer Lines: Some ISO tanks come with dedicated lines for the safe withdrawal of cryogenic liquids at their destination.
Benefits of Cryogenic ISO Tanks:
- Top-Notch Safety: These tanks are built with safety at the forefront. They are ideal for transporting highly volatile and potentially dangerous cryogenic liquids. There is no need to take unnecessary risks!
- Holds a Heap: With their impressive capacity, cryogenic ISO tanks can have a substantial amount of these super-cold liquids, making deliveries much more efficient.
- Jack of All Trades: Versatility is their middle name! Cryogenic ISO tanks can handle many cryogenic liquids, making them perfect for all industrial applications.

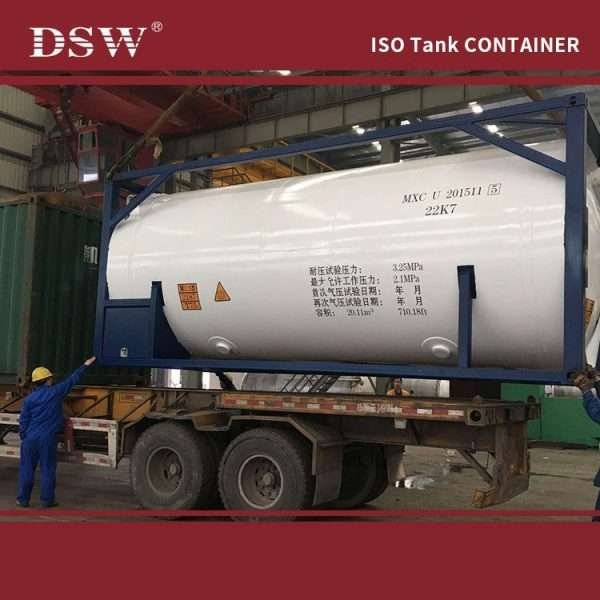

- Flexible Transport: Designed for intermodal transport, these tanks can be easily switched between lorries, ships, and trains – no need to unload the cargo itself, saving time and effort.
What is a cryogenic iso tank?
A cryo tank container or tanktainer is a pressure intermodal container for the bulk transport liquid gases, such as LNG, LIN, LOX, LAR, LC02, etc.
ISO tanks are made of stainless steel, with insulation and a protective layer of aluminium or polyurethane.
Cryogenic ISO Tank Container
| Model | 10ft | 20 ft iso tank container | 40ft tank container |
| Working Pressure | 8Bar/16Bar /24Bar | ||
| Medium | LOX/LIN/LAR/LNG/LCo2 | ||
| Insulation Type | High Vacuum Multilayer | ||
| Standard | GB/ASME | ||
