The Ultimate Guide to Cryogenic Liquid Storage Vessels: Everything You Need to Know

The demand for secure, dependable, and efficient storage solutions becomes increasingly critical to support the continuous growth and expansion of industries worldwide. This necessity becomes even more paramount for industries handling cryogenic liquids like liquefied natural gas (LNG), nitrogen, oxygen, and argon. Cryogenic liquids require storage at extremely low temperatures to maintain their liquid state, and any failure in the storage system can have catastrophic consequences. Therefore, it is vital for industries dealing with cryogenic liquids to recognize the significance of appropriate storage vessels and their proper maintenance. This comprehensive guide to cryogenic liquid storage vessels will take you through the essential aspects, from design and construction to operation and maintenance. Whether you are an experienced industry professional or just entering the field, this guide will provide the knowledge and insights necessary to ensure cryogenic liquids safe and reliable storage

Cryogenic tank technology

Cryogenic tank technology refers to the specialized engineering and design principles applied to the construction and operation of tanks used for storing and transporting cryogenic liquids at extremely low temperatures. Cryogenic tanks are designed to safely contain liquefied gases such as oxygen, nitrogen, argon, helium, and hydrogen, which exist in a liquid state at temperatures below -150°C (-238°F).

Types of Cryogenic Liquids and Their Applications
Cryogenic liquids are used in a variety of industries for different purposes. The four most common cryogenic liquids are liquefied natural gas (LNG), nitrogen, oxygen, and argon. LNG is used as a fuel for transportation, heating, and power generation. Nitrogen is used in the food and beverage industry to preserve food and create an inert atmosphere. Oxygen is used in the medical industry to treat respiratory problems, and argon is used in the welding industry to create an inert atmosphere.
Each cryogenic liquid has unique properties that make it suitable for specific applications. For example, LNG has a high energy density, making it an excellent fuel for transportation. Nitrogen has a low boiling point, making it ideal for use in cryopreservation. Oxygen is highly reactive, making it useful in combustion and oxidation processes. Argon is an inert gas that helps prevent oxidation during welding.

cryogenic liquid storage tank is to fill and store cryogenic liquid. For the safe use of cryogenic liquid storage tanks, comprehensive consideration should be given to the dangerous properties of gas, cryogenic protection effects, surrounding environmental conditions, and characteristics of pressure vessels, etc., and appropriate technical management measures should be taken to ensure safe operation.

Liquid  Gas Storage Vessel Design

The design of liquid gas storage vessels, also known as cryogenic storage tanks, is a critical aspect of ensuring safe and efficient storage of liquefied gases at extremely low temperatures.

Cryogenic liquid storage vessels are designed to store cryogenic liquids at extremely low temperatures. They are typically made of high-quality materials that withstand extreme cold and pressure from liquefied gas. The design of these vessels is critical to ensuring their safe and reliable storage.

Liquid gas storage vessels come in different shapes and sizes depending on their intended use. They can be vertical or horizontal and range in size from small portable containers to large stationary tanks. The design of cryogenic liquid storage vessels also depends on the type of cryogenic liquid being stored and its intended use.

The design of cryogenic storage vessels includes features such as double-walled construction, vacuum insulation, and pressure relief systems. Double-walled construction provides an additional layer of protection against leaks and spills. Vacuum insulation helps maintain the cryogenic liquid’s low temperature and reduces heat transfer. Pressure relief systems prevent overpressure in the storage vessel, which can lead to explosions.

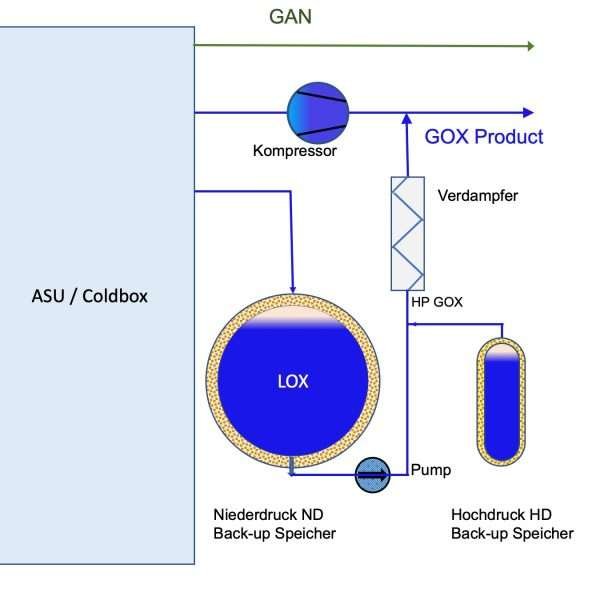

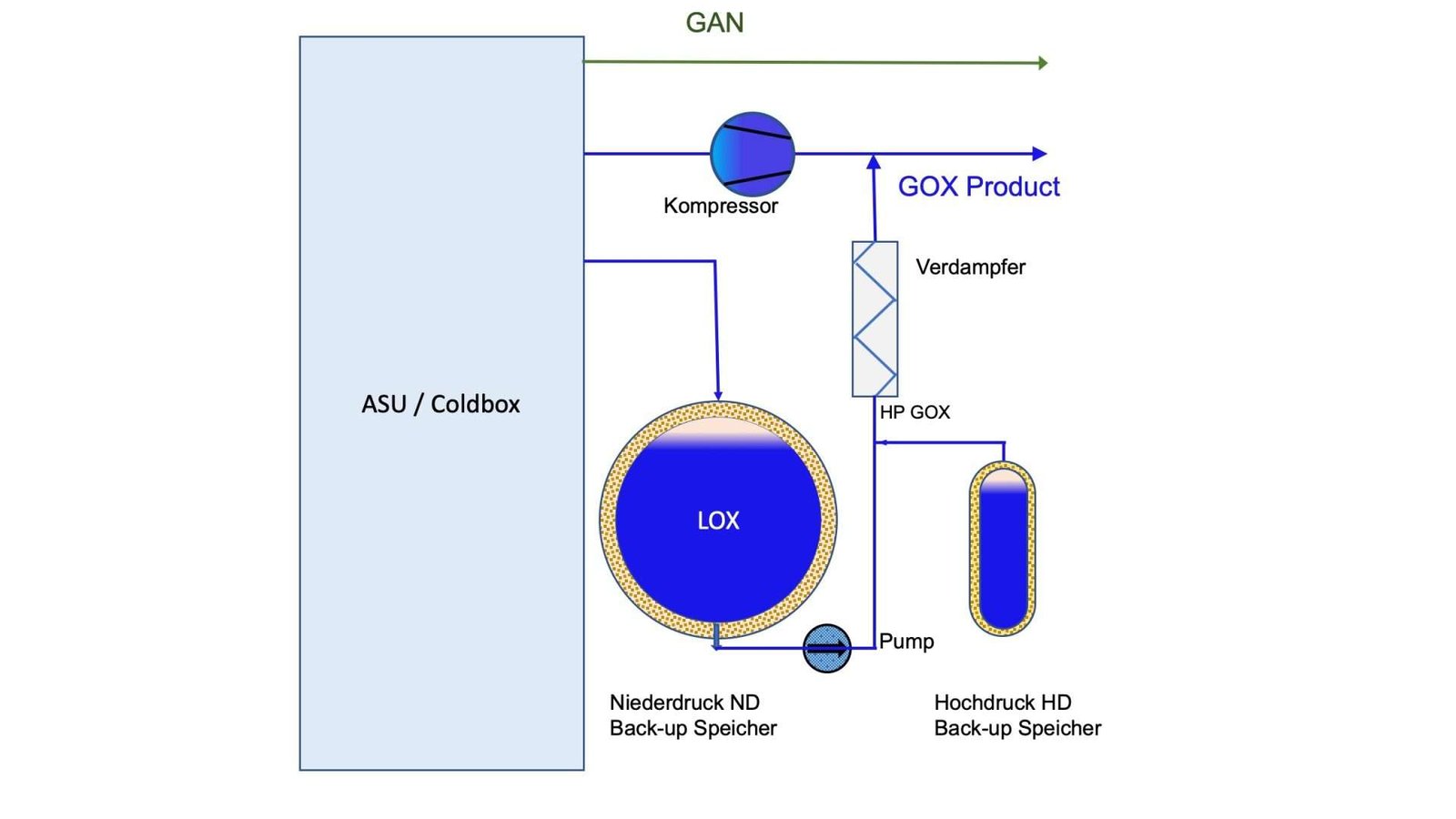

Industrial gases, including oxygen, nitrogen, argon, and hydrogen, are commonly produced either in gaseous form or as cryogenic liquids. Cryogenic liquid vessels serve as essential storage or backup solutions for these gases.

Main Components:
 Liquid storage Tank
 High-pressure pump
 Vaporiser


The structure and type of cryogenic storage tanks

In recent years, the low-temperature liquid market has become increasingly popular. Sales of liquid oxygen, argon, nitrogen, carbon dioxide, LNG, and natural gas have increased sharply. Non-steel products are an essential part of revenue. The production, storage, and transportation of cryogenic liquids cannot be separated from cryogenic storage tanks.

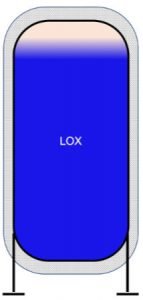

Cryogenic vacuum-insulated tanks:

  • Vacuum Insulated Tanks: This tank stores liquid delivered to a pump or tanker, typically up to 5 bar (g) pressure. The inner vessel is made of stainless steel, and the outer vessel is made of carbon steel. Insulation is provided by a vacuum interspace filled with perlite and often equipped with instrumentation such as level indication and pressure protection.
  • Vacuum Isolated Evaporator: Designed for pressures up to 35 bar (g), it is used with a vaporizer to supply gas to customers. It is suitable for providing large quantities of products for a short duration. The inner vessel is made of stainless steel, and the outer vessel is made of carbon steel. Insulation is provided by a vacuum interspace filled with perlite and often equipped with instrumentation such as level indication and pressure protection.

cryogenic liquid storage tank,The Ultimate Guide to Cryogenic Liquid Storage Vessels: Everything You Need to Know

During the regular use of the cryogenic storage tank, a person should be responsible for the roving inspection. Check that the pressure of the inner container does not exceed the working pressure of the storage tank. If the pressure is exceeded, pressure relief measures should be taken. Check the status of each valve and the leakage status, and find that the status is different or there is a leak.

Liquid Storage Vessels Design
Flat Bottom Tanks
atmospheric storage held a few millibars above atmospheric pressure
large quantities of a single product
inner vessel stainless steel, outer vessel carbon steel
site built tank
emergency flap valves central in/outlets
insulation: perlite interspace with a nitrogen purge

Regularly check the vacuum in the jacket of the cryogenic liquid storage tank. If the vacuum deteriorates, take additional vacuuming measures (tank storage should be invited to the professional unit or the original manufacturing unit). Find various failures of the cryogenic liquid storage tank equipment and accessories. You should always find the reason, make correct analysis and judgment, and take reasonable solutions to ensure its continuous regular operation and safe use.

Safety Considerations for Cryogenic Storage Vessels

Cryogenic liquid storage vessels can be hazardous if not handled properly. They are highly volatile and can ignite under certain conditions. They are also extremely cold and can cause severe frostbite or hypothermia if they come into contact with skin. Additionally, they are highly compressible and can cause explosions if not handled properly.
To ensure the safe and reliable storage of cryogenic liquids, proper safety procedures must be followed. This includes proper training for all personnel who will be handling liquid storage vessels, regular inspections and maintenance of storage vessels, and the use of appropriate personal protective equipment. It’s also critical to ensure that all storage vessels are designed and constructed to meet industry standards and regulations.

Choosing the Right Cryogenic Liquid Storage Vessel

Choosing a suitable cryogenic storage vessel is critical to ensuring safe and reliable storage. The choice of storage vessel depends on the type of liquefied gas being stored, its intended use, and the environmental conditions in which it will be used.
When choosing a cryogenic storage vessel, it’s essential to consider factors such as the size and shape of the vessel, the insulation material used, the safety features included, and the material used in its construction. Ensuring that the storage vessel meets industry standards and regulations is also essential.

What are Cryogenic storage vessels?

Cryogenic storage vessels, also including dewars, are the most common way to store large quantities of hydrogen. Super-insulated low-pressure vessels are needed to keep liquid hydrogen at -253°C (-423°F), with a pressure of no more than 5 bar (73 psig).
