Multi Layer Insulation


Super Thermal Insulation in Cryogenic Applications

Introduction

Effective thermal insulation is crucial in cryogenic applications, where temperatures drop to deficient levels. Super thermal insulation technologies are essential for maintaining these ultra-low temperatures, ensuring the efficiency and reliability of cryogenic systems. This article explores various superthermal insulation technologies, their specific applications in cryogenics, and the latest trends and advancements in the field.

Types of Super-Insulation Technology

  1. Multi-Layer Insulation (MLI):
    • Overview: MLI uses multiple layers of thin, reflective materials to reduce heat transfer by reflecting thermal radiation.
    • Cryogenic Adaptations: Cryogenic MLI uses lower-emissivity materials and more layers to enhance insulation and minimize thermal bridging and heat leaks.
    • Applications: Ideal for space-constrained applications, MLI is commonly used in spacecraft and cryogenic storage tanks.

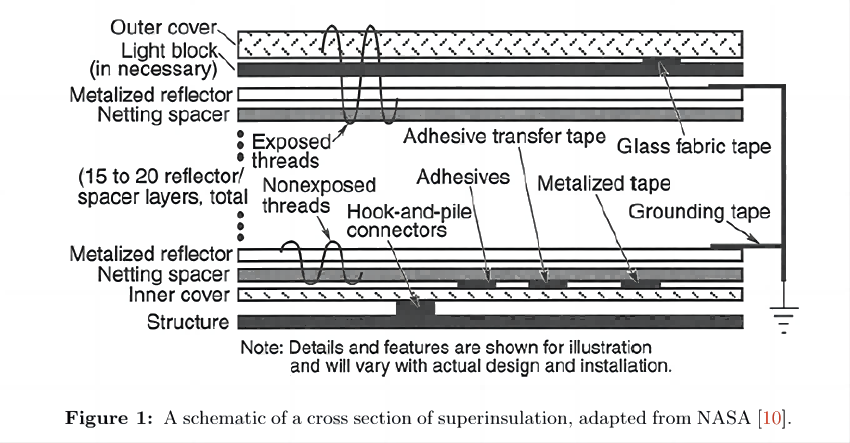

  2. Multilayer insulation (also called superinsulation or multi-layer or single-layer insulation or simply MLI) are thermal irradiation1 or radiative emission barriers
    Multilayer insulation (also called superinsulation)
  3. Aerogel Insulation:
    • Properties: Aerogels are lightweight, highly porous materials that offer exceptional thermal insulation by minimizing conductive heat transfer.
    • Cryogenic Use: Despite their high cost and fragility, aerogels are used in specialized cryogenic applications.
    • Future Potential: Research aims to enhance the durability and reduce the cost of aerogels, making them more accessible for broader cryogenic applications.
  4. Vacuum Insulation Panels (VIPs):
    • Mechanism: VIPs have a core material encased in a vacuum-sealed envelope, significantly reducing heat transfer by conduction and convection.
    • Challenges: Maintaining the vacuum over time is challenging, as even minor leaks can compromise insulation performance.
    • Cryogenic Relevance: VIPs are influential in applications requiring high-performance insulation, such as cryogenic storage and transport.
  5. Foam Insulation:
    • Types: Common types include polyurethane and polystyrene foams, known for their versatility and high insulation value.
    • Environmental Impact: The production and disposal of foam insulation pose ecological concerns, prompting ongoing improvements in eco-friendliness.
    • Usage: Foam insulation is widely used in construction and industrial applications, providing a cost-effective solution for many cryogenic needs.
  6. Phase-Change Material (PCM) Insulation:
    • Function: PCMs absorb and release heat during phase changes, helping to maintain consistent temperatures.
    • Applications: Effective in building materials and temperature-sensitive transport, PCMs are increasingly used in cryogenic systems to manage thermal fluctuations.
    • Challenges: Identifying materials with suitable phase change temperatures and ensuring long-term stability remain significant challenges.

MLI in Cryogenic Insulation

  1. Differences from High-Temperature MLI:
    • Material Choices: Cryogenic MLI uses lower-emissivity materials and more layers than high-temperature MLI.
    • Design Considerations: Enhanced flexibility and durability are crucial to withstand thermal cycling and extreme cold in cryogenic environments.
  2. Performance in Cryogenic Environments:
    • Effectiveness: Cryogenic MLI minimizes heat transfer in applications like liquid hydrogen storage and space missions.
    • Material Composition: Common materials include aluminized polyester and polyimide films, separated by low-density spacers to prevent conductive heat transfer.

Functioning of MLI in Super-Insulated Systems

  1. Mechanism of Thermal Insulation:
    • Radiation Reduction: MLI reduces heat transfer by reflecting thermal radiation using multiple layers of reflective materials.
    • Layer Separation: Spacers prevent conductive heat transfer between layers, enhancing overall insulation performance.
  2. Factors Affecting MLI Performance:
    • Layer Characteristics: The number of layers, material emissivity, layer thickness, and spacing are critical for optimal performance.
    • Design Optimization: Balancing these factors is essential to achieve high insulation levels without excessive weight or volume.
  3. Advantages and Challenges:
    • Advantages: Superior thermal insulation and lightweight and compact form make MLI ideal for aerospace and cryogenic applications.
    • Challenges: High manufacturing and installation costs, requiring precise control over layer placement and material quality.

Role of Vacuum in MLI Performance

  1. Importance of Vacuum Level:
    • Heat Transfer Reduction: A vacuum between MLI layers eliminates air molecules, reducing heat transfer through conduction and convection.
    • Thermal Performance: Higher vacuum levels improve insulation by minimizing thermal bridging and heat transfer.
  2. Challenges in Maintaining Vacuum:
    • Vacuum Integrity: Creating and sustaining a vacuum requires meticulous design and robust sealing techniques.
    • Environmental Factors: Temperature and pressure changes can impact the vacuum, necessitating regular maintenance.

Heat Leak Performance and Vacuum Level

  1. Relationship Between Vacuum Level and Heat Leaks:
    • Heat Leak Rates: Higher vacuum levels reduce heat leaks by minimizing conduction and convection.
    • Design Considerations: Engineers must consider vacuum envelope integrity, material selection, and system durability.
  2. Minimizing Heat Leaks:
    • Testing and Monitoring: Regular testing ensures sustained performance by detecting and addressing potential leaks.
    • Material Selection: Using materials with high vacuum retention properties enhances the long-term effectiveness of the insulation.

Case Studies and Examples

  1. Real-World Applications:
    • Aerospace: MLI is used extensively in spacecraft for thermal management in space missions.
    • Cryogenic Storage: VIPs and MLI are employed in liquid hydrogen and LNG storage tanks to maintain ultra-low temperatures.
    • Construction: Advanced foam and PCM insulation are used in building materials for energy-efficient constructions.
  2. Success Stories:
    • Energy Savings: Case studies demonstrate significant energy savings and enhanced thermal management in various applications.
    • Innovative Implementations: Highlighting innovative uses of super-insulation technologies guides future developments and best practices.

Future Trends and Developments

  1. Ongoing Research:
    • Material Improvements: Research focuses on developing more durable, cost-effective insulation materials.
    • Manufacturing Advances: Innovations in manufacturing processes aim to enhance performance metrics and reduce costs.
  2. Emerging Technologies:
    • Nanomaterials: The development of nanomaterials promises superior insulation properties and broader application possibilities.
    • Intelligent Insulation: Integrating innovative technologies for adaptive thermal management in various applications.

Conclusion

Super thermal insulation technologies are vital for efficient and reliable thermal management in cryogenic applications. As research and development progress, these technologies will become more accessible and practical, driving innovation and sustainability in the industry. Continuous improvement in insulation materials and methods promises a future of enhanced energy efficiency and performance in cryogenic systems.
